TECHNIVOLT Standfuß TECHNIVOLT Stanfuß

TechniVolt Stand 1

Suitable for wallboxes TECHNIVOLT 100/101

Suitable charging stations

TECHNIVOLT 101

TECHNIVOLT 100
TECHNIVOLT 100

TECHNIVOLT 101
1 oder 2 Boxen

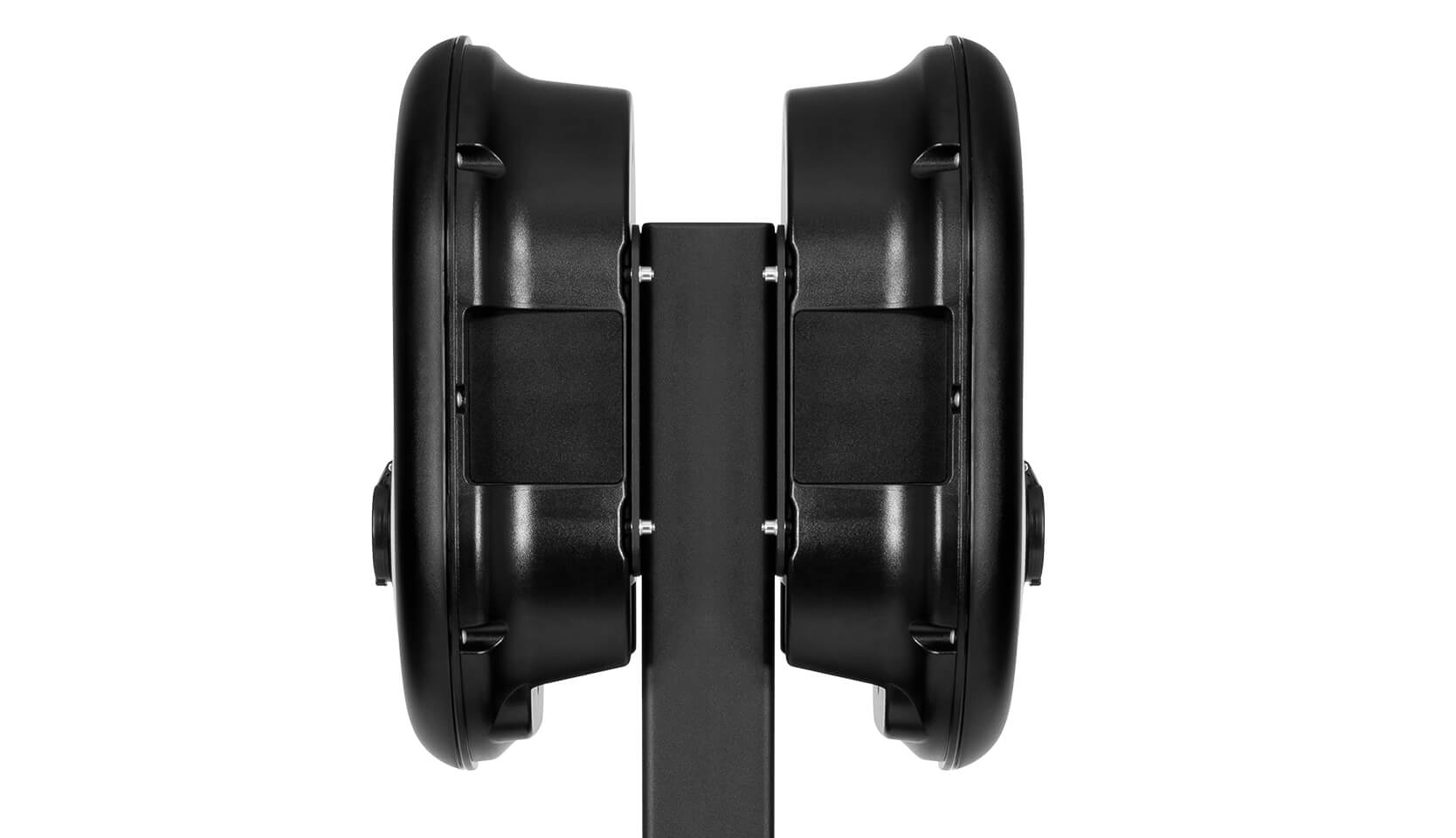

Installation of 1 or 2 charging stations

One or two charging stations can be attached to the TechniVolt Stand 1. Installation material included in delivery.

Elegante Optik

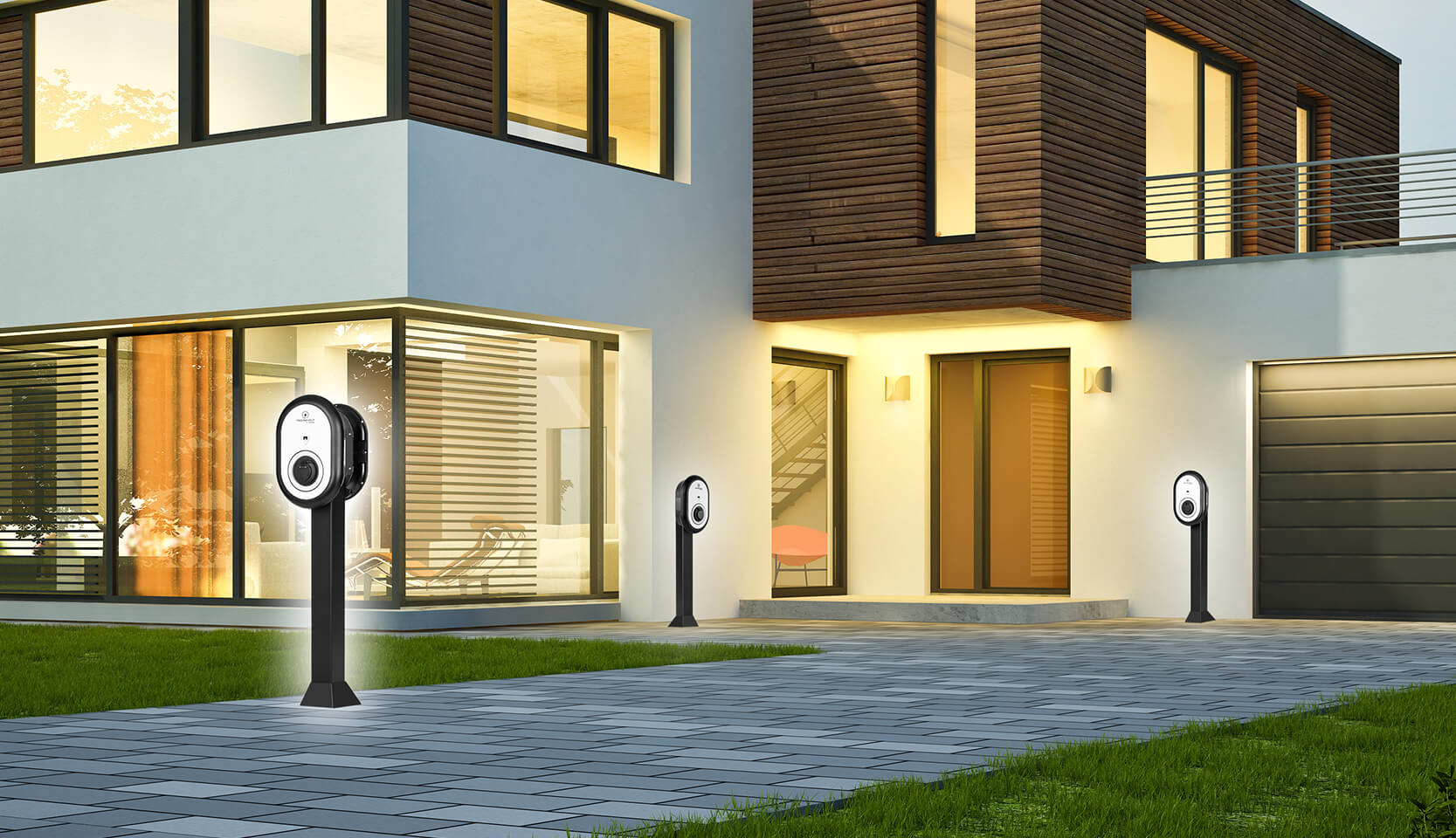

Elegant visual appearance, flexible installation

The freestanding positioning of the charging stations is visually appealing, locally flexible, and can go without drilling holes in the house wall, for example.

Adapter plate

Supplied in 2-fold version, option for mounting a second charging station.

Adapterplatte

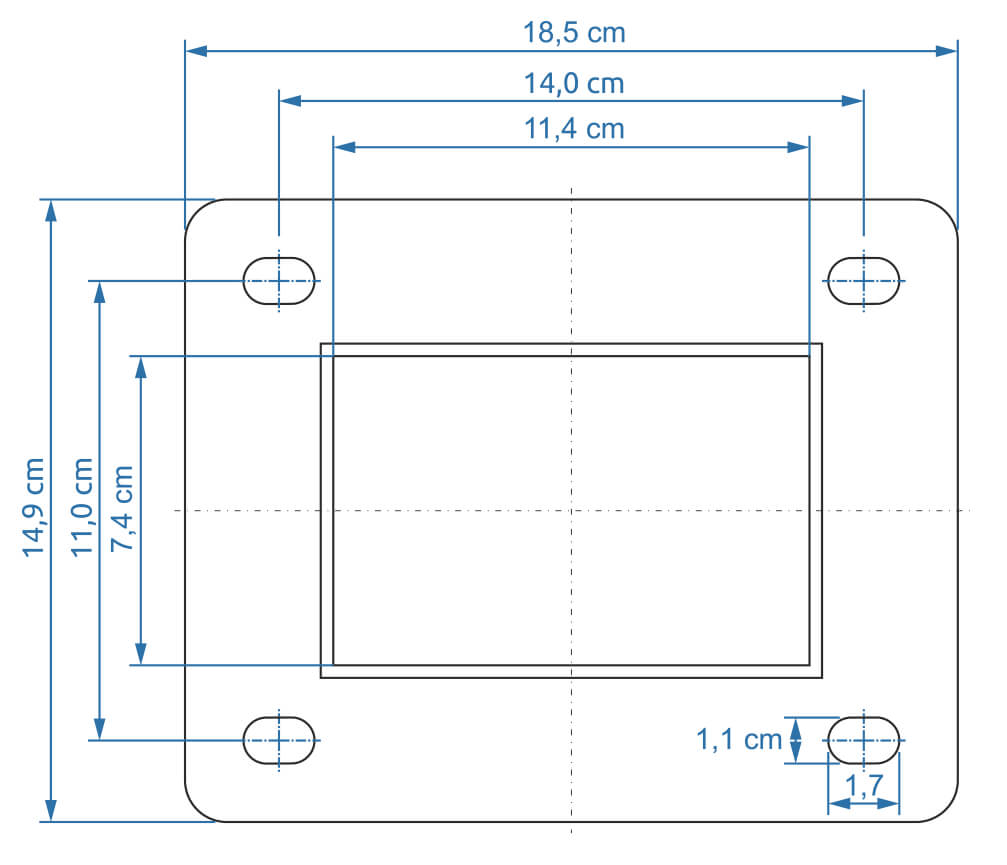

Presentation floor plate

Bodenplatte

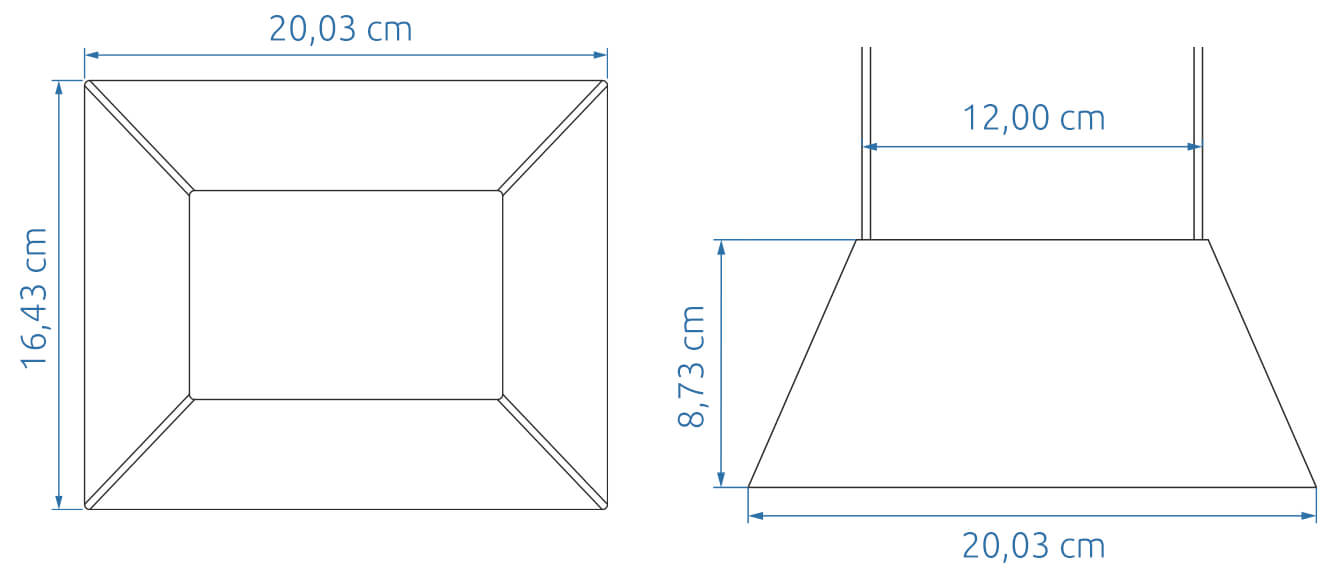

Presentation covering floor plate/screws

Bodenplatte

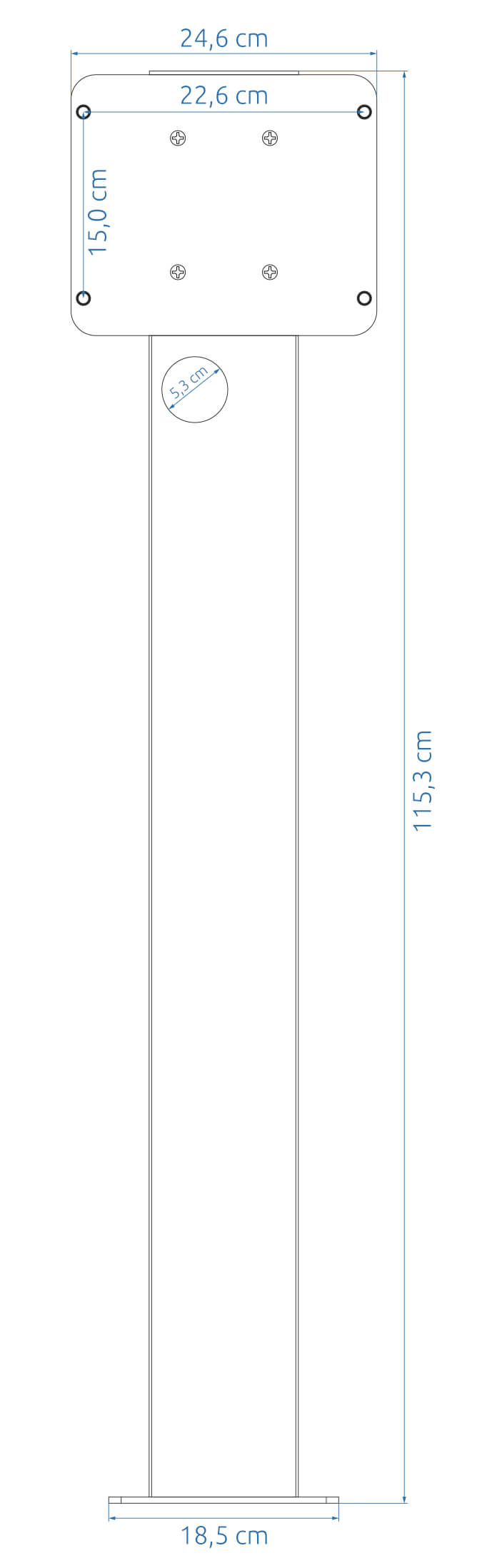

Total height (charging station inclusive): 127,3 cm
Height stand with adapter: 115,3 cm

Floor plate: 14,9cm x 18,5 cm
Distance drill holes: 11,0 cm x 14,0 cm

Screws for attachment to the base or charging station on the adapter plate are included in delivery.

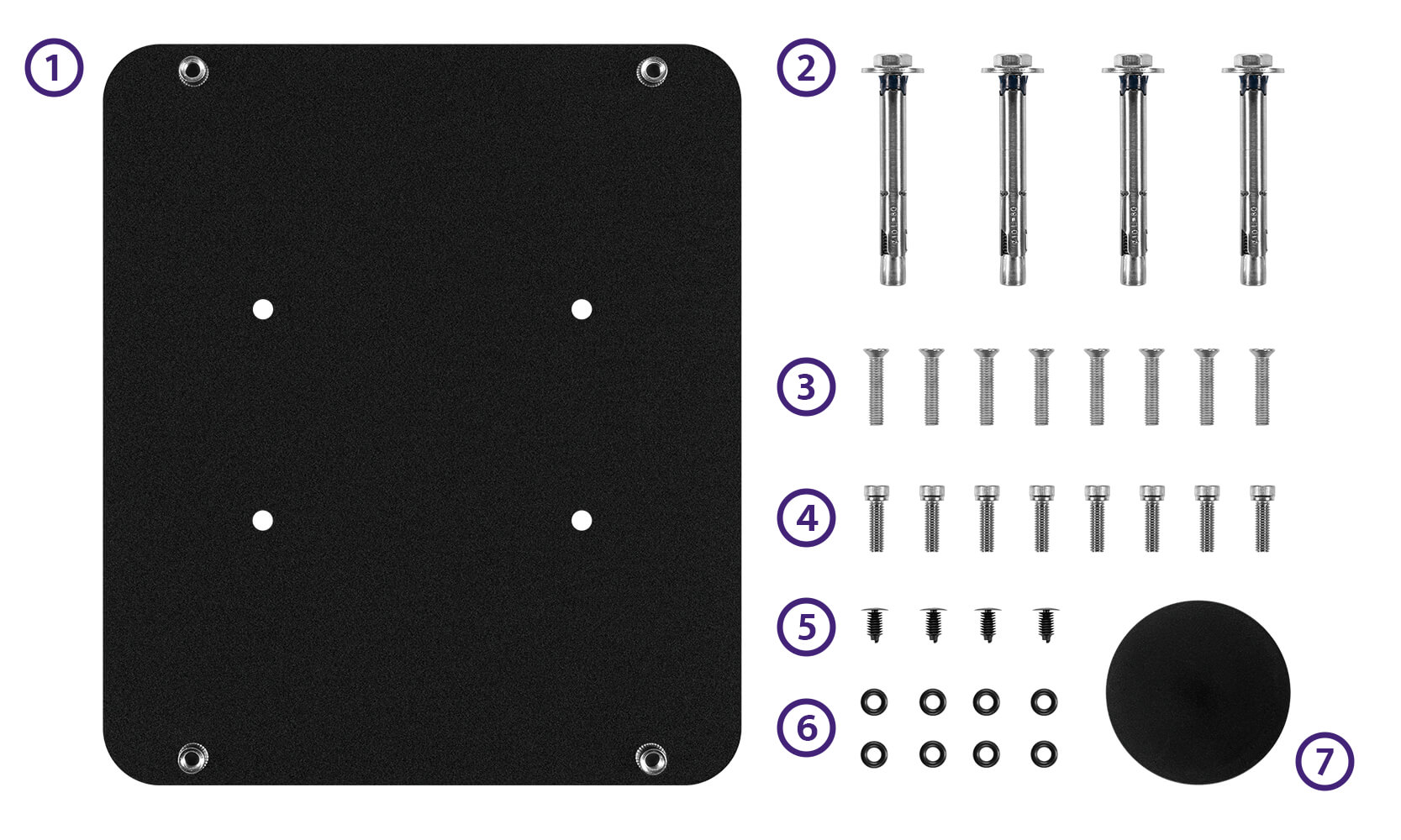

Montagematerialien

All there to start right away

  1. Mounting plate (2x)
  2. Anchor bolt, metric 10, class 8.8, length 80 mm (4x)
  3. Countersunk head screw, M6, length 30 mm (8x)
  4. Cylinder head screw, M6, length 20 mm (8x)
  5. Blind plug (4x)
  6. O-ring (8x)
  7. Sealing plug (1x)

Technical data

Article data

EAN
4019588064461
Colour
black
Item no.
0000/6446
Weight (Box)
17.1 kg
Weight
14.3 kg
Device (W x H x D)
20.30 x 115.30 x 16.40 cm
Box
27.50 x 24.50 x 138.00 cm

Show all technical details

Scope of delivery

Stand, 2x adapter plate for wallbox including matching screws, screws for fastening to the foundation
